Balancing Report

1. General Information

Rotor ID: HIL · P1 + P2 · 07.09.2026 · Arc27	Date: 07.09.2026
Location: HIL test bench; training example; tolerance 50 g*mm	Balancer: Balanset-1A

2. Applied Standards

a) ___________________________________________________________



b) ___________________________________________________________ (other)

3. Balancing Results

No.	Run	Vibration, mm/s			Unbalance, g*mm
		P1	P2	Tol.	P1	P2	Tol.
1	Before	5.71	4.19		510.69	382.42	50.00
2	After	0.120	0.200		21.95	33.27

Notes:

____________________________________________________________________



____________________________________________________________________



____________________________________________________________________



____________________________________________________________________



____________________________________________________________________



____________________________________________________________________

Technician:

____________________________________________________________________

Generated by Balanset-1A Balancing System | VIBROMERA | www.vibromera.eu

Original Vibration (Run #0)

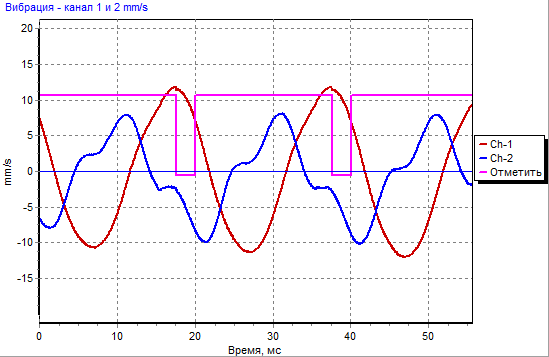

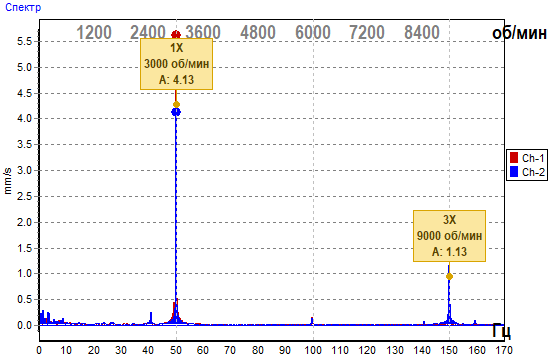

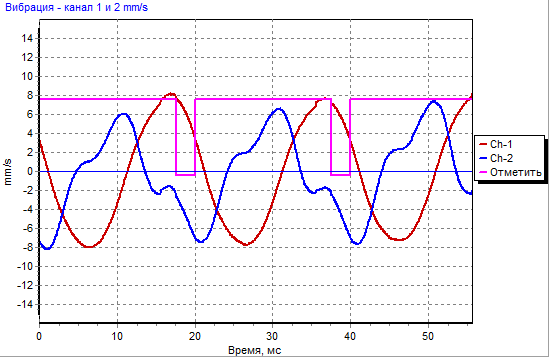

RPM: 3000.0 Parameter Plane #1 Plane #2 V, mm/s 5.71 4.19 Phase, ° 337.7 225.9 Wave Chart - Original Vibration Spectrum Chart - Original Vibration

Trial Weight - Plane 1 (Run #1)

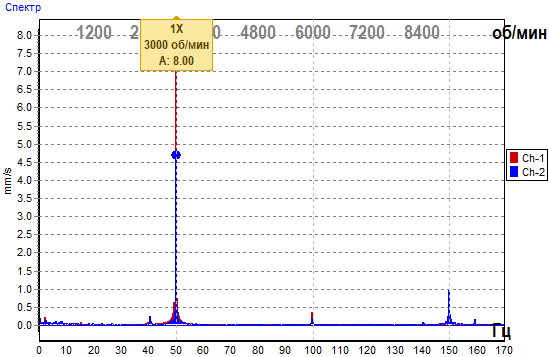

RPM: 3000.0 Parameter Plane #1 Plane #2 V, mm/s 8.08 4.74 Phase, ° 349.7 234.0 Wave Chart - Trial Weight Plane 1 Spectrum Chart - Trial Weight Plane 1

Trial Weight - Plane 2 (Run #2)

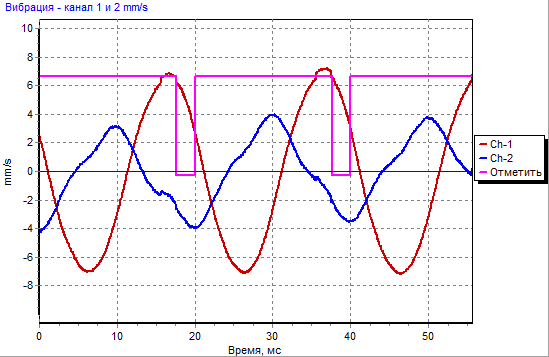

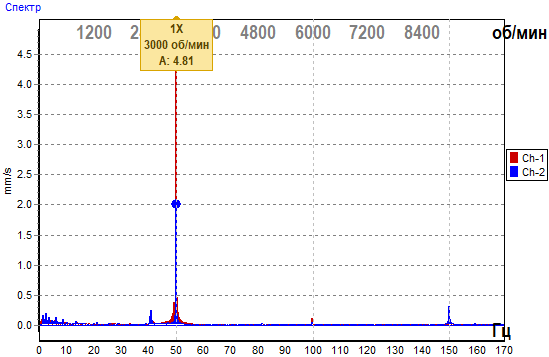

RPM: 3000.0 Parameter Plane #1 Plane #2 V, mm/s 4.85 2.01 Phase, ° 338.2 213.2 Wave Chart - Trial Weight Plane 2 Spectrum Chart - Trial Weight Plane 2

Trim Balancing (Final Run)

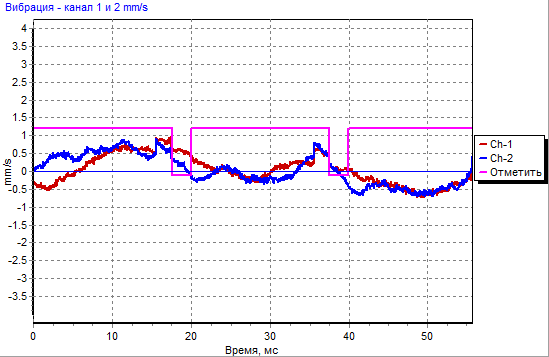

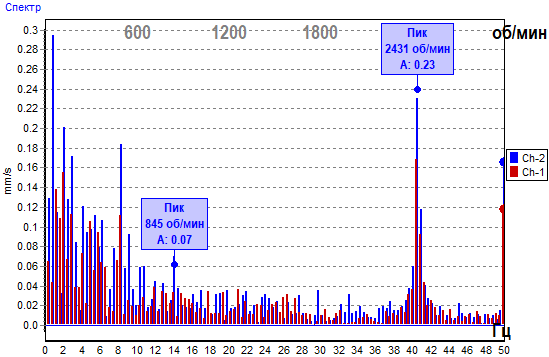

RPM: 3000.0 Parameter Plane #1 Plane #2 V, mm/s 0.263 0.318 Phase, ° 244.9 246.1 Wave Chart - Trim Balancing Spectrum Chart - Trim Balancing

Correction Weights

Parameter Plane #1 Plane #2 Mass, g 5.11 3.82 Angle, ° 213.0 21.0 Unbalance, g*mm 510.7 382.4

Trim Balancing (Final Run)

RPM: 3000.0 Parameter Plane #1 Plane #2 V, mm/s 0.124 0.199 Phase, ° 356.9 27.81 Wave Chart - Trim Balancing Spectrum Chart - Trim Balancing

Correction Weights

Parameter Plane #1 Plane #2 Mass, g 0.38 0.50 Angle, ° 333.0 338.0 Unbalance, g*mm 37.7 50.5
